- Series:Snap-in terminal
- Operating Temperature:-40℃+105℃
- Features:Large capacity
- Applications:welding machine,inverter,photovoltaic,color TV,computer,amplifier
- Manufacturer:XUANSN
Factory High Quality 15000uF 200V Electrolytic Capacitor Large Ripple for Industrial Power
Description
This 15000uF 200V Electrolytic Capacitor is designed with a secure snap-in structure, offering stable capacitance, low leakage current, and excellent voltage resistance. To ensure consistent and reliable performance, the internal design focuses on maintaining stability even under demanding power conditions. It is ideal for applications requiring reliable and continuous power output, such as switching power supplies, inverters, industrial control systems, and UPS units. Thanks to its robust construction and optimized materials, the capacitor delivers long-term performance across various industrial environments. With an 105°C / 5000-hour endurance rating, it is suitable for long-term use in general industrial equipment.
15000uF 35V Electrolytic Capacitor Key Selling Points
Snap-in design for fast and secure installation
Stable capacitance with low leakage current
High ripple current capability for improved reliability
105°C temperature rating
Endurance ≥ 5000 hours
Suitable for high-power and high-stability applications
Custom capacitance, voltage, and size available
15000uF 200V Electrolytic Capacitor Applications
Switching power supplies (SMPS)
UPS / Inverters
Industrial control systems
Welding machines, frequency converters
Solar and wind energy systems
Audio amplifiers, home appliance control boards
15000uF 200V Electrolytic Capacitor Parameters Table
| Item | Characteristics |
|---|---|
| Temperature Range | -40+105℃ |
| Specification | 15000UF200V |
| Capacitance Tolerance | ±20% (M) (at 20°C, 120Hz) |
| Dissipation Factor (tanδ) | tanδ (max.)=0.45 (at 20°C, 120Hz) |
| Rated ripple current (Arms/105°C, 120Hz) | 1.66 |
| Low Temperature Characteristics (Max. Impedance Ratio) | Z(-25°C)/Z(+20°C)=3 Z(-40°C)/Z(+20°C)=10 (at 120Hz) |
| Endurance | The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 5,000 hours at 105°C. Capacitance Change :≤±20% of the initial value D.F. (tanδ):≤200% of the initial specified value Leakage Current :≤The initial specified value |
| Leakage Current | I≤3 CV Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes) |
| Shelf Life | The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C without voltage applied. Capacitance Change:≤±20% of the initial value D.F. (tanδ):≤150% of the initial specified value Leakage Current:≤200% of the initial specified value |
Product details display

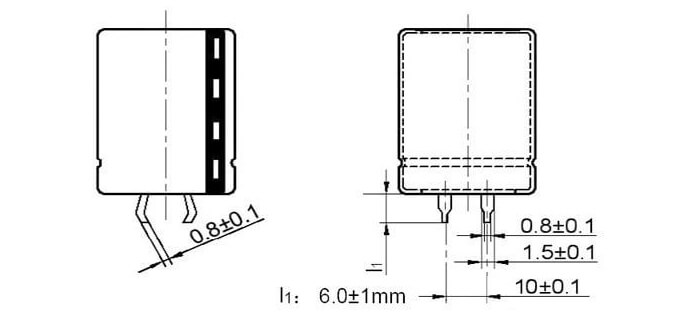

Dual snap-in terminals for firm PCB mounting, ideal for high-current environments
Clear and accurate marking on the case
High-purity aluminium can for improved heat dissipation
Optimized electrolyte and aluminium foil combination for enhanced charge/discharge performance
Production workshop display
Xuansn is a professional manufacturer of aluminium electrolytic capacitors, equipped with automatic winding machines, filling lines, aging rooms, and ripple current testers. Our production and QC systems ensure stable quality and reliable global supply.
FAQ:
Q1. Can I have some capacitor samples?
A: Yes, welcome to sample test and check quality, factory brand samples are free.
Q2. How about the delivery time?
A: Samples take 3-5 days, bulk product order quantity takes 2 weeks.
Q3. How do you ship and how long does it take to arrive?
A: We usually ship by DHL, UPS, FEDEX or TNT, and it usually takes 3-5 days to arrive. Air and sea shipping are also optional.
Q4. Can my logo be printed on the capacitor?
A: Yes, please inform us formally before production and confirm the design based on our samples first
Q5. Do you offer guarantee for your products?
A: Yes, we provide 2-3 years warranty for our products.
Q6. How to deal with faults?
A: If the goods you purchased from the factory have quality problems, you can return them to us for replacement or refund. And any returned goods must be in original condition to be eligible for refund or replacement.
If you have any interests and questions, please contact us!
